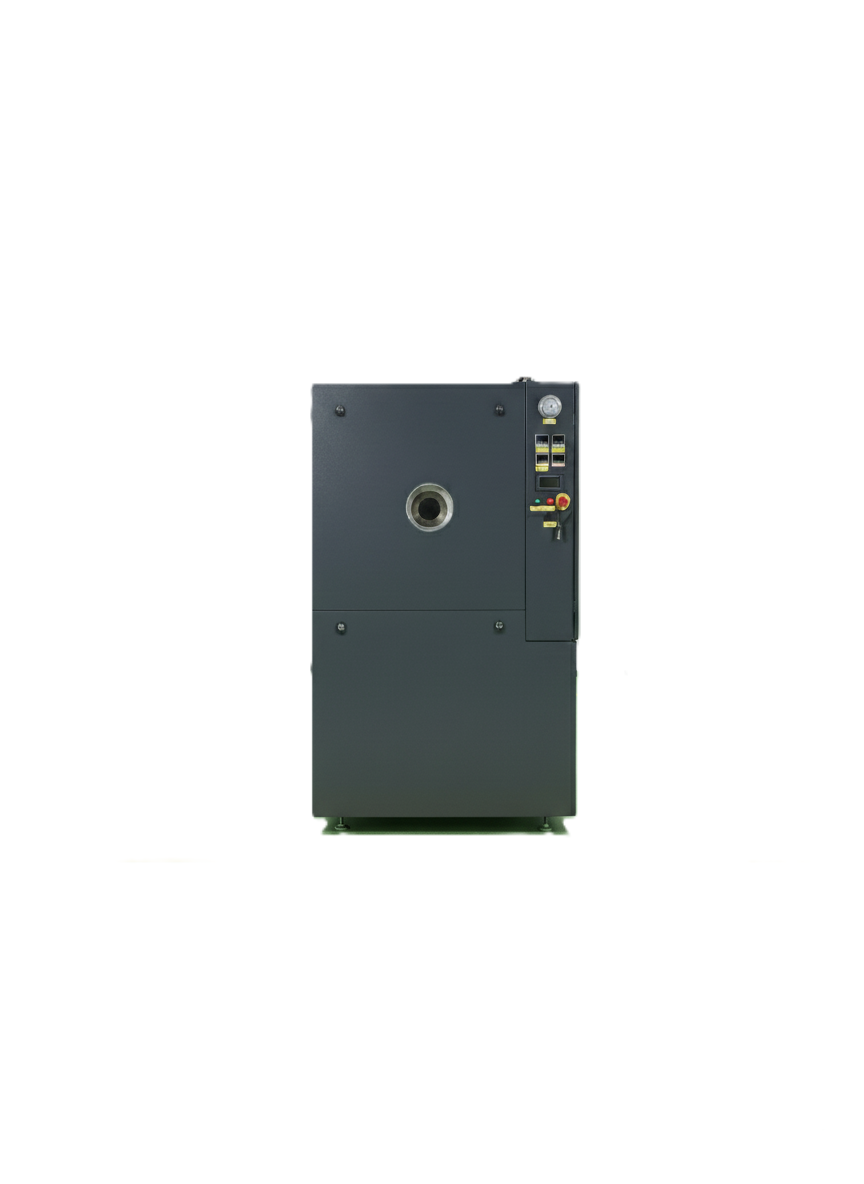

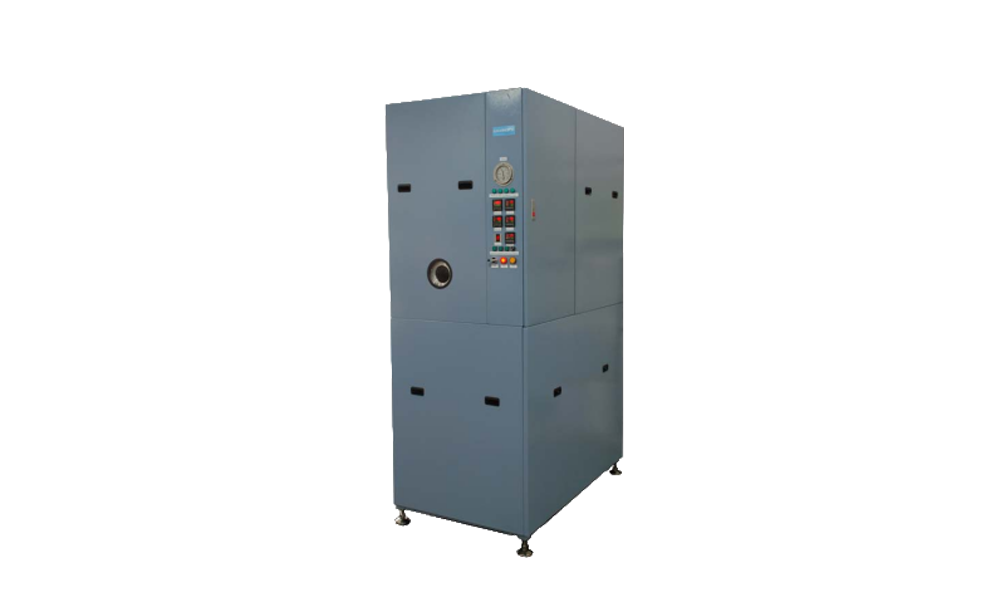

Hydrocarbon Recovery System
A hydrocarbon distillation recovery unit designed for the recovery and recycling of various hydrocarbon solvents, which effectively improves solvent utilisation and reduces wastage
Product Details
Design Features
High-efficiency recovery — Distillation capacity of up to 80–100 L/hr
Indirect heating — Utilises thermal oil for indirect heating, ensuring uniform and stable heating
Easy operation — Push-button design with automatic operation
Safety Design — Equipped with explosion-proof motors and devices within the electrical cabinet to prevent the accumulation of explosive gases;
features monitoring of vacuum level, liquid level, temperature, pressure and other parameters, as well as overload protection
Flexible and User-Friendly — Integrated unit structure, easily movable, suitable for all types of industrial premises
Product Specifications
| Model | Hydrocarbon Recovery System |
| Solvent type | Hydrocarbon solvent |
| Recovery rate | 80 ~100 L/hr |
| Heating method | By indirect method of hot oil |
| Electrical requirement | AC 380V / Φ3+NE / 50Hz |
| Electrical rating | 12kW |
| Solvent in/out pipe | 1/2" |
| Chiller water in/out pipe | 1/2" |
| Drain pipe | 3/4" |
| Compressed air pipe | Φ6 mm |
| Required chilled water flow rate | ＞20 L/min (temp＜20℃) |
| Required chilled water pressure | ＞0.2Mpa |
| Required compressed air Pressure | 0.5 ~ 0.6 Mpa |
| Safety facility | Explosion-proof motor and safety device to prevent flammable gas accumulated in electriacl main box |
| Overall dimension (mm) | L720 × W1200 × H2000 |
| Weight | 430 kgs |
