Immersible Ultrasonic Transducer | KP Series

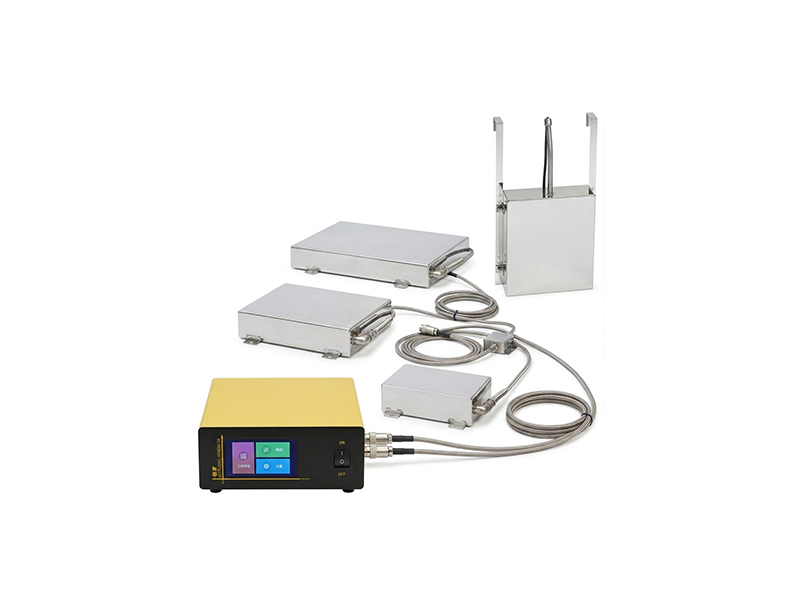

The KP series of submersible ultrasonic transducers are the core components of ultrasonic cleaning systems. Offering flexible installation options and available in a range of sizes, they can be fitted into existing cleaning tanks to enhance cleaning performance.
Product Details
Standard Configuration Main Applications
All-stainless steel construction Cleaning of optical lenses
High-efficiency ultrasonic transducer Cleaning of eyewear components
Chip-type ultrasonic generator Cleaning of precision metal components
Continuous operation mode Cleaning of telecommunications equipment components
Electric heating system Maintenance and cleaning of aviation facilities
Constant temperature system Maintenance and cleaning of transport vehicles
Multiple protective features Cleaning of plastic components
Multiple frequency options Pre- and post-plating cleaning of metal and plastic parts
Can be customised to meet specific requirements
Product Specifications
| Model | KP-1006 | KP-1012 | KP-1018 | KP-1024 | KP-1030 | KP-1036 | |
| Overall dimension(mm) | L/W/H | 305/250/100 | 355/305/100 | 406/305/100 | 500/355/100 | 550/406/100 | 500/460/100 |
| Housing's material① | SUS304 / SUS316L Thickness:2.5mm | ||||||
| Radiating surface finishing | Hard-Cr Plating Treatment (5~10 μm) | ||||||
| Ultrasonic frequency② | 28KHZ/40KHZ | ||||||
| Ultrasonic transducer quantity | 6 | 12 | 18 | 24 | 30 | 36 | |
| Ultrasonic output power (Max.) | 300W | 600W | 900W | 1200W | 1500W | 1800W | |
| Ultrasonic generator | KG-300 | KG-600 | KG-900 | KG-1200 | KG-1500 | KG-1800 | |
| Generator type | Split Type | ||||||
| Generator's power requirement | AC 220V,Φ1,13A | ||||||
| Option | ①Housing's Material SUS316 or Titanium available | ||||||
| ②Ultrasonic frequency 25kHz + 40kHz dual frequency /68kHz/80kHz/120kHz/160kHz available | |||||||
