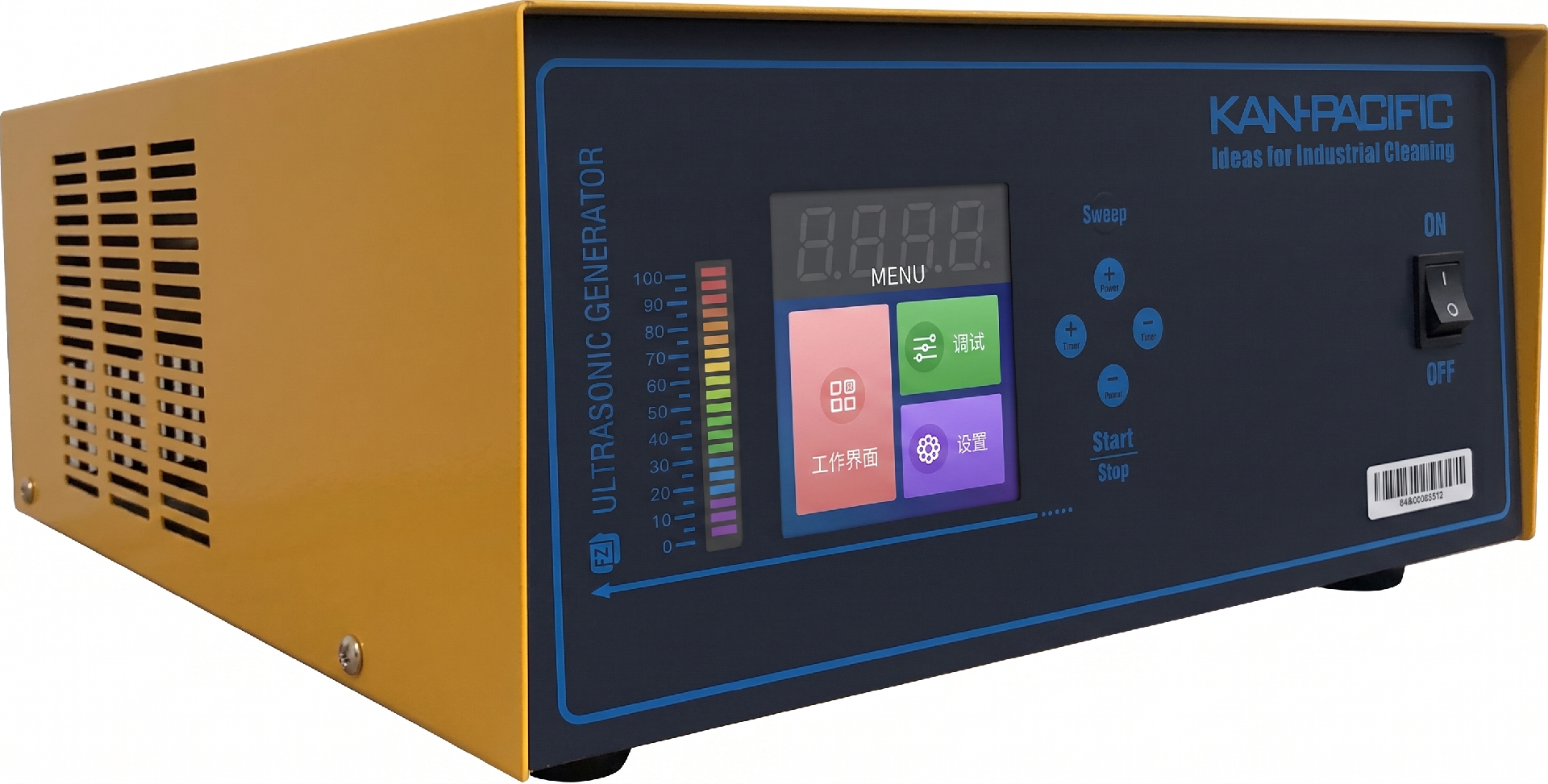

KG-Series

Key Advantages

Small Particle Removal – High-frequency ultrasound has been proven to be very effective for removing small particles.

Reduced Damage – High-frequency ultrasound delivers effective cleaning while reducing the potential damage that can occur with conventional ultrasound.

True Variable Power Control – Enables cavitation intensity adjustment from 0% to 100%, matching power to the application. Power is controlled via amplitude, ensuring a consistent and safe process. Power can be controlled manually or via PLC. A bright LED display indicates the selected power level.

Single Transducer Design – Ensures flexibility for system changes at any time.

Frequency Sweeping – Allows process engineers to use frequency sweeping to eliminate standing waves and improve the distribution of ultrasonic activity.

Line/Load Regulation – Compensates for fluid level and temperature changes, as well as line voltage and load variations. Variations are kept below 3%, ensuring very consistent cleaning.

General Specifications

Input Voltage: 220V +/- 10%

Average Output Power: 35–50 W per element

Output Power: 300–1800 W

Output Frequency: 25–40 kHz

Dimensions: 370(L) x 290(W) x 130 mm(H)

Weight: 6 kg

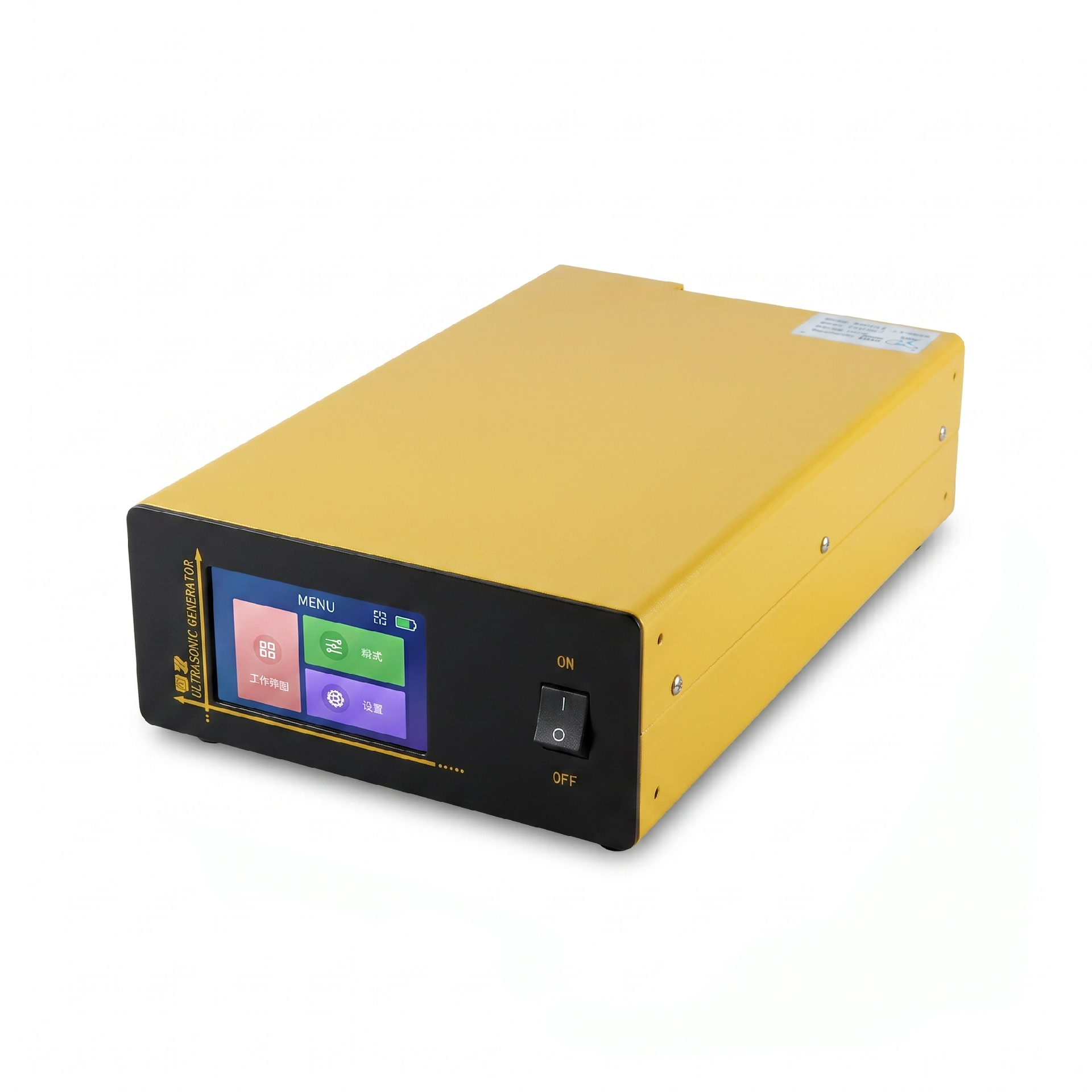

KG-I-Series

Key Advantages

Automatic Frequency Tracking Adjustment – Maintains the optimal operating frequency for the application. It allows the generator to dynamically adjust to changing conditions, optimizing performance with respect to parameters such as temperature, liquid level, and tank load.

General Specifications

Input Voltage: 220V +/- 10%

Average Output Power: 35–50 W per element

Output Power: 300–1800 W

Output Frequency: 25–40 kHz

Dimensions: 380(L) x 220(W) x 90 mm(H)

Weight: 5 kg
